Unitube Non-metallic Non-armored Cable£¨GYFXY£©
Classification£ºOutdoor Optical CableTime£º2017/9/29 11:35:30
View£º661
- Details
|

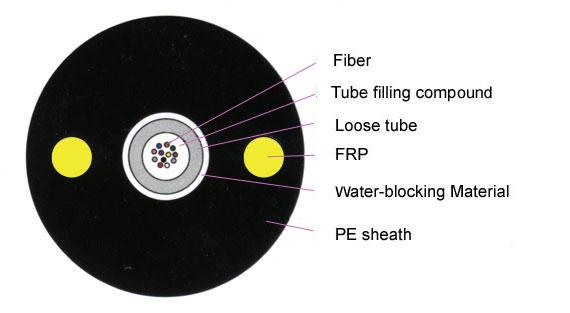

¡¤Description The fibers, 250¦Ìm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath. |
||||||||||||||||||||||||||||||||||||||||||||||||||
|
¡¤Characteristics ¡¤ Good mechanical and temperature performance ¡¤ High strength loose tube that is hydrolysis resistant ¡¤ Special tube filling compound ensure a critical protection of fiber ¡¤ Two parallel FRPs ensure tensile strength ¡¤ PE sheath protects cable from ultraviolet radiation ¡¤ Small diameter, light weight and friendly installation ¡¤ Long delivery length ¡¤Standards GYFXY cable complies with Standard YD/T 769-2003. ¡¤Optical Characteristics |
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|
¡¤Technical Parameters |
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage/Operating Temperature : -40¡æ to + 70¡æ |
||||||||||||||||||||||||||||||||||||||||||||||||||
